Waste Water Heat Recovery for Showers

Recoup Pipe HEX Active

The Recoup Pipe HEX Active combines the incredible energy-saving, and carbon-reducing benefits of Recoup’s market-leading Recoup Pipe HEX vertical WWHRS, with a low-power staged pump and innovative, proprietary buffer tank. This new product now allows the highest efficiency WWHRS be applied to ground-floor showers, apartments, or modular bathroom pods with contained services. Scenarios that previously could only use lower-performing horizontal WWHRS systems. The Pipe HEX Active also uniquely opens up the retrofit and adaptation market to WWHRS. Making installation to existing showers easier and less disruptive as all required works can be contained within the shower area.

The Active system can also be applied to the shorter Pipe HEX Rd (1700mm), as the Recoup Pipe HEX Rd Active. A slightly lower efficiency system that can be installed where installation height is restricted below standard.

Features and benefits

  • 2100mm long pipe with installation height of 2347mm
  • Vertical system designed for same level installation with shower trays
  • Low power Sanishower® Flat electrical pump
  • Double walled, patented vertical heat exchanger
  • KIWA validated efficiencies of up to 68.5%
  • First-fix & retrofit friendly design
  • PVC outer pipe reduces weight, cost and is an on site theft deterrent
  • Option of 3 system installation variations
  • No planned maintenance
  • No end user interaction is required, no habit change for use
  • SAP listed on the Product Characteristics Database (PCDB)
  • Legionella control risk assessed
  • Recoup Pipe HEX Rd Active available for reduced install height

Recoup Pipe HEX Active Technical information downloads

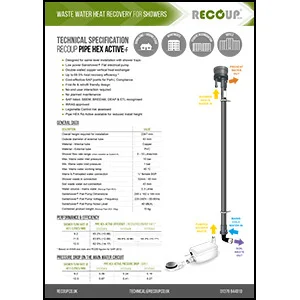

Recoup Pipe HEX Active-F Technical SpecificationRecoup Pipe HEX Active-F Technical Specification

Technical Specification document for the Pipe HEX Active-F.

Download Here…

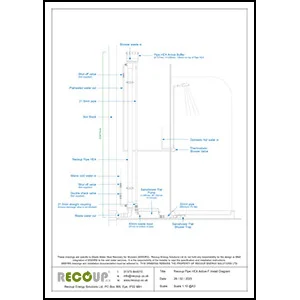

Recoup Pipe HEX Active-F Install DiagramRecoup Pipe HEX Active-F Install Restrictions & Pipe Configurations

Install Diagram for the Pipe HEX Active-F.

Download Here…

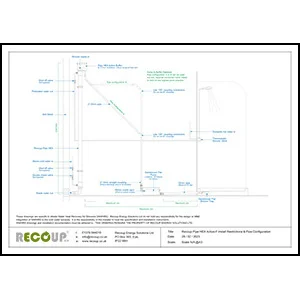

Recoup Pipe HEX Active-F Install Restrictions & Pipe ConfigurationsRecoup Pipe HEX Active-F Install Restrictions & Pipe Configurations

Install Restrictions & Pipe Configurations for the Pipe HEX Active-F.

Download Here…

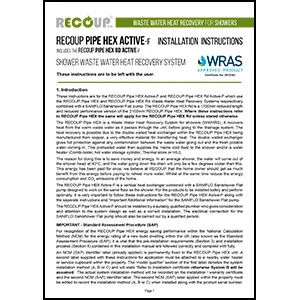

Recoup Pipe HEX Active-F installation Guide and DataRecoup Pipe HEX Active-F installation Guide and Data

Guide to the installation, product details, performance and operation.

Download Here…

Recoup WWHRS BrochureRecoup WWHRS brochure

Recoup's Waste Water Heat Recovery System (WWHRS) Brochure and Portfolio to download, save, print or share. Provides background information on WWHRS and why to use it, SAP assessment, SBEM, BREEAM, Passive House, all product options, features, benefits, installation methods and links to additional useful information. Download here...

Recoup Knowledge Base Logo

The Recoup Knowledge Base is our fully searchable library of information available 24 hours a day. Quickly find answers to common questions or deep-dive full in-depth technical articles, product information and design walk-thrus, as well as, key articles, industry news and a growing list of case studies.
Visit Recoup Knowledge Base.
