Waste Water Heat Recovery for Showers

Recoup Drain+ Compact

Building a wet room or have access issues? The Recoup Drain+ provides a great WWHRS option. Finished in stainless steel, a “double walled” exchanger, and offering 50% efficiencies. This is a must have system for leisure clubs, gyms, nursing homes, holiday parks, ground floor self build or any walk-in shower. Finished in stainless steel the Drain+ Compact provides a comtemporary waste water heat recovery system for energy saving in wetroom and ground floor applications. Giving a smooth flush finish in any domestic or commercial wet room setting including but not limited to self-builds, leisure clubs, swiming pools, gyms, hostels, campsites, nursing homes or schools.

Features and benefits

  • 800mm unit size
  • Patented heat exchanger
  • KIWA validated efficiencies of up to 40%, dependant on flow rate
  • WRAS approved
  • Legionella control risk assessed
  • Buit-in trap
  • Case and cover made from brushed stainless steel
  • Easy access for cleaning
  • Option of 3 system installation variations
  • Can be incorporated into modular bathrooms
  • Virtually maintenance free
  • SAP listed

Product application

Bungalows or ground floor, Apartments, Commercial properties Product Application

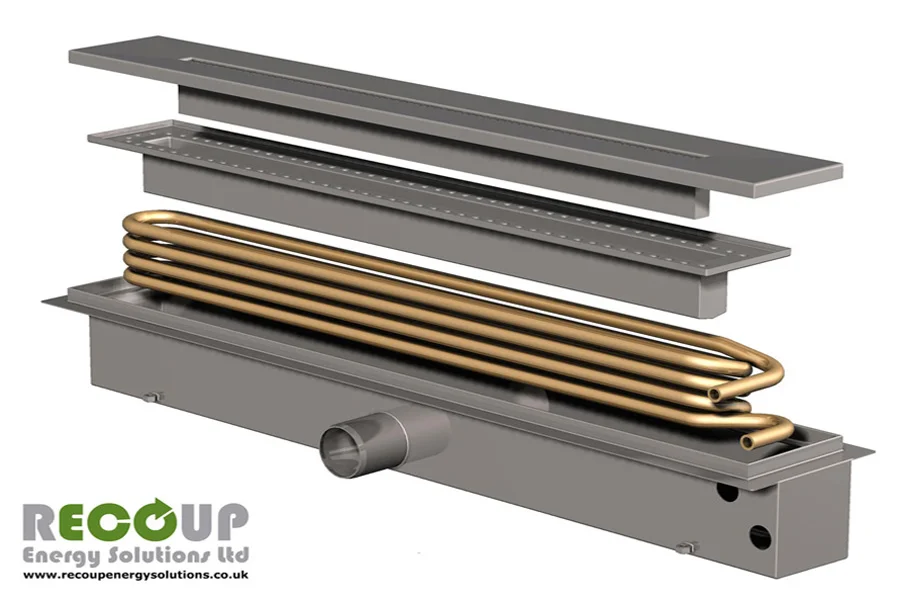

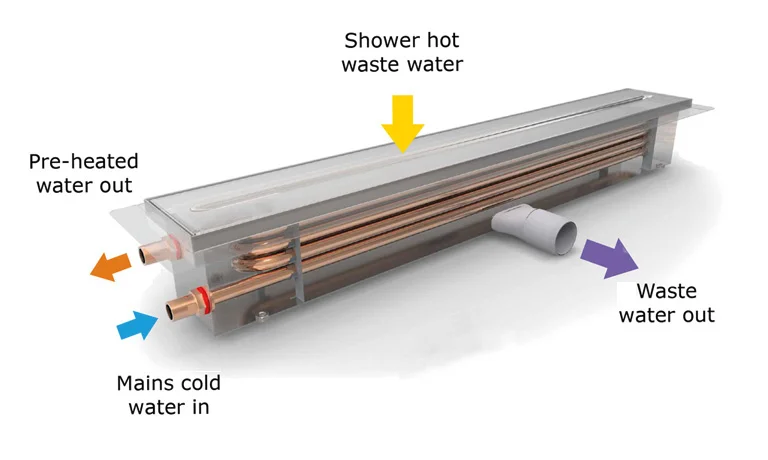

Product diagram

Recoup Drain+ Compact Diagram

Drain+ Compact Data & Specification

Specification details

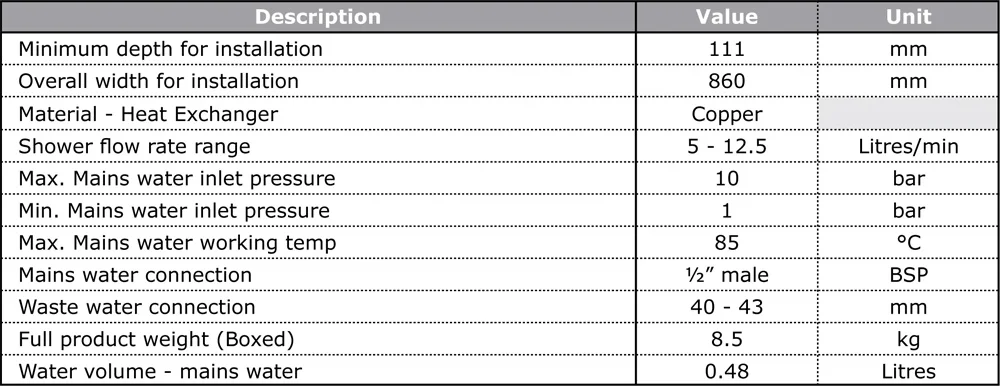

Technical Data - General Information

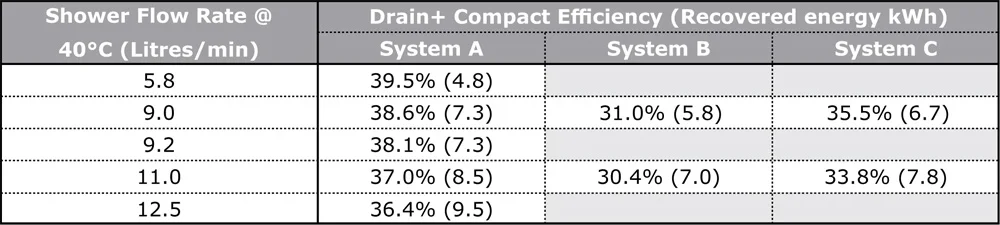

Performance & efficiency

Technical Data - Performance & Efficiency

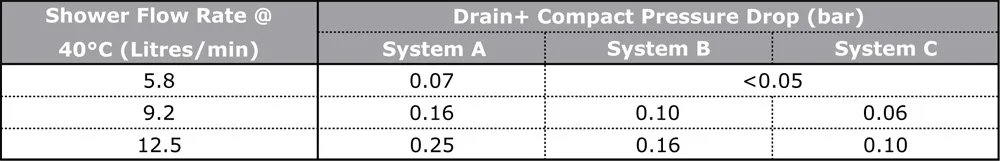

Pressure drop on mains water circuit

Technical Data - Pressure Drop on Mains Water Circuit

Technical information and downloads

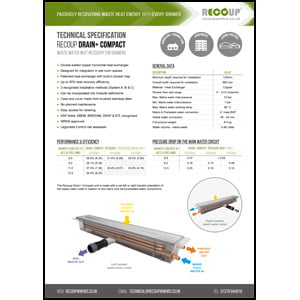

Recoup Drain+ Compact Technical SpecificationRecoup Drain+ Compact Technical Specification

Technical Specification document for the Recoup Drain+ Compact.

Download Here…

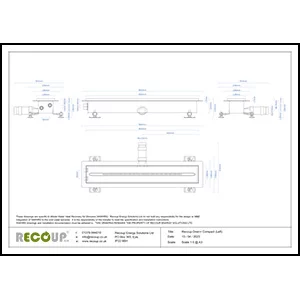

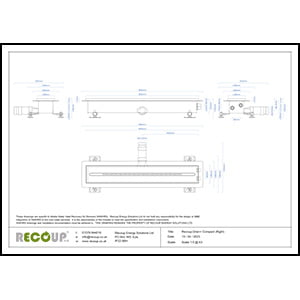

Recoup Drain+ Compact DrawingRecoup Drain+ Compact drawing

Recoup Drain+ drawing document.

Download Here…

Recoup Drain+ Compact installation and dataRecoup Drain+ Compact installation and data

Guide to the installation, product details, performance and operation of the Recoup Drain+ Compact product.

Download Here…

Recoup WWHRS BrochureRecoup WWHRS brochure

Recoup's Waste Water Heat Recovery System (WWHRS) Brochure and Portfolio to download, save, print or share. Provides background information on WWHRS and why to use it, SAP assessment, SBEM, BREEAM, Passive House, all product options, features, benefits, installation methods and links to additional useful information. Download here...
