Waste Water Heat Recovery for Showers
Recoup HeatDeck
The Recoup HeatDeck is the newest waste water heat recovery for showers product to the Recoup range (Available Q4 2024). The combination of Recoup’s WWHRS experience combined with Mira Showers tray technology and expertise. Integrating a horizontal copper heat exchanger into a UK designed and manufactured shower tray range.
The Recoup HeatDeck is the ideal product for ground floor applications, easy WWHRS integration to any project, and housing decarbonisation through direct retrofit replacement of existing shower trays. As well as TMV shower installations the HeatDeck is also fully compatible with the new Mira Heatloop™ electric shower. The first electric showers that can be safely used with Recoup waste water heat recovery.
● Up to 43% heat recovery efficiency
● TMV mixer or Mira Heatloop™ electric showers compatible
● Size options with 2, 3, or 4 upstands
● Built with Mira Flight technology (white gloss or anti-slip coating)
● Suitable for newbuild, bathroom upgrades, or retrofit
● 3 recognised TMV installation methods (System A, B & C)
● No-end user interaction, or change of use
● No planned maintenance
● Fully accessible from above for complete peace of mind
● SAP registered
● Compatible with Mira shower tray riser kit
● Designed and manufactured in the UK
Waste shower water enters the Recoup HeatDeck with around 85% to 90% of its original heat energy. The heat exchanger within the WWHRS unit efficiently transfers heat energy to incoming mains cold water producing preheated water. The shower waste water leaves the Recoup HeatDeck to the SVP and the preheated water is sent to the shower and / or water heater. The use of preheated water reduces the demand for hot water and saves energy.
Watch the video below to see how the Recoup HeatDeck works and the three installation methods for TMV showers.
TMV Shower Installation Methods
System A
Preheated water to the shower and water heater
System B
Preheated water to the shower only
System C
Preheated water to the water heater only
Mira Heatloop™ Electric Showers
Recoup WWHRS products are compatible with the Mira Heatloop™ electric shower range. For user safety do not connect Recoup WWHRS to any other electric shower.
When installing Recoup WWHRS with a Mira Heatloop™ electric shower the preheated water is sent to the cold water connection. As the preheated water increases in temperature the energy consumption reduces. For more information visit our Mira Heatloop™ product page.
General Data
| Description | 800 x 800 | 1200 x 800 |
| Overall product height (no upstands) | 80 mm | 84 mm |
| Overall product height (with upstands) | 102.25 mm | 106.25 mm |
| Overall product length | 805 mm | 1205 mm |
| Overall product width | 805 mm | 805 mm |
| Material – Heat Exchanger | Copper | |
| Shower flow rate range | 5 – 20 Litres/min | |
| Max. Mains water inlet pressure | 18 bar | |
| Min. Mains water inlet pressure | 1 bar | |
| Max. Mains water working temp | 85 °C | |
| Mains & Preheated water connection | ½” male BSP | |
| Waste water connection | 40 – 43 mm | |
| Full product weight | < 43 kg | < 56 kg |
| Water volume – mains water | 1.6 Litres | |
| Maximum user weight | 160 kg | |
Performance & Efficiency
| Shower Flow Rate @40°C (Litres/min) | HeatDeck Efficiency ( Recovered energy kW ) * | ||
| System A | System B | System C | |
| 5.8 | 42.9% (4.51) | ||
| 9.2 | 37.8% (6.3) | ||
| 11 | 35.47% (7.07) | ||
| 12.5 | 32.5% (7.36) | ||
* Based on KIWA test data, PCDB & SAP registered.
Pressure drop on the main water circuit
| Shower Flow Rate @40°C (Litres/min) | HeatDeck Pressure Drop ( bar ) | ||
| System A | System B | System C | |
| 5.8 | 0.078 | ||
| 9.2 | 0.214 | ||
| 11 | 0.318 | ||
| 12.5 | 0.41 | ||

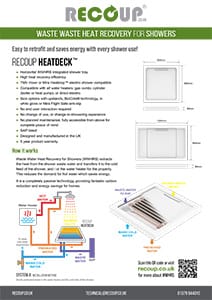

Introduction Overview

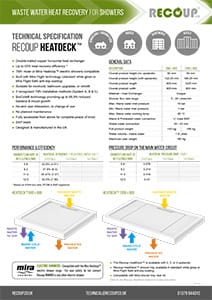

Technical Specification
Installation Instructions
Recoup HeatDeck 800 x 800 Drawing

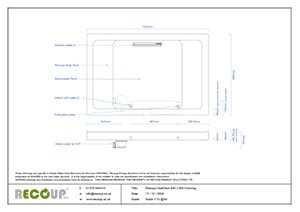

Recoup HeatDeck 1200 x 800 Drawing
